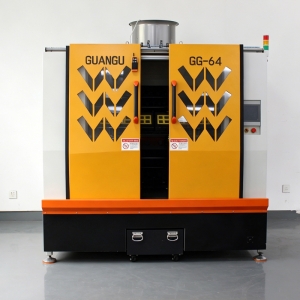

Mirror polishing machine-GG9064

Product Introduction

GG9064 planetary dry mirror polishing machine adopts planetary composite motion. Abrasive media creates three-dimensional grinding on workpieces. It realizes dead-angle-free full-surface polishing and high-gloss mirror finish, suitable for mass-production of complex-shape precision metal workpieces.

Working Principle

Place metal workpieces, special plant-based abrasive particles and polishing oil into the drum. Driven by centrifugal force, workpieces and abrasives collide, roll and rub against each other. Micro-cutting removes burrs, scratches and oxide layers automatically, replacing manual polishing to achieve mirror surface.

Advantages

1. Full-surface polishing, no dead corners on complex-shaped parts.

2. Dry & wet dual-mode processing, PLC full-automatic control, dust-free and eco-friendly.

3. Large 120L capacity for high-volume batch production.

4. Abrasive particles are reusable, lower production cost and higher batch efficiency.

5. Stable polishing quality, consistent surface effect for whole-batch products.

6. Reduce internal stress of workpieces, no deformation during processing.

Machine Features

1. Special fixing structure prevents collision between workpieces.

2. High-speed operation improves cutting capacity and shortens processing time.

3. No metamorphic layer or extra stress left on polished surface.

4. Supports both dry and wet processing modes.

Application Scope

Precision hardware, electronic components, aerospace parts, military accessories, communication parts, sports goods, musical instruments, high-end jewelry and accessories. Typical parts: bearings, gears, hydraulic components, mold cavities, surgical implants, optical fittings, wafer carriers, precision sensors.

Equipment Composition

Mechanical system, electrical control system, dust exhaust removal system.

Before & After Polishing

Display the original-state workpieces and finished mirror-effect samples.

Product Parameters｜Model: GG9064

· Motor Main Axis: 3.7KW Secondary Axis: 1.5KW 3 Phase: 380V/220V

· Capacity: 120L, Wet & Dry

· Mechanical Spec Public Transfer Revolution:180 Rotation Revolution:25

· Machine Size:192013601850 mm

· Machine Weight:1200KG

· Barrel Divisions Square bucket opened, 1 side in total 4 buckets, 4 sides 4 Grid Groove:200×200×960 32 Grid Groove:200×200×110 64 Grid Groove:90×200×110 - Optional: Vacuum Cabinet 2.2KW
