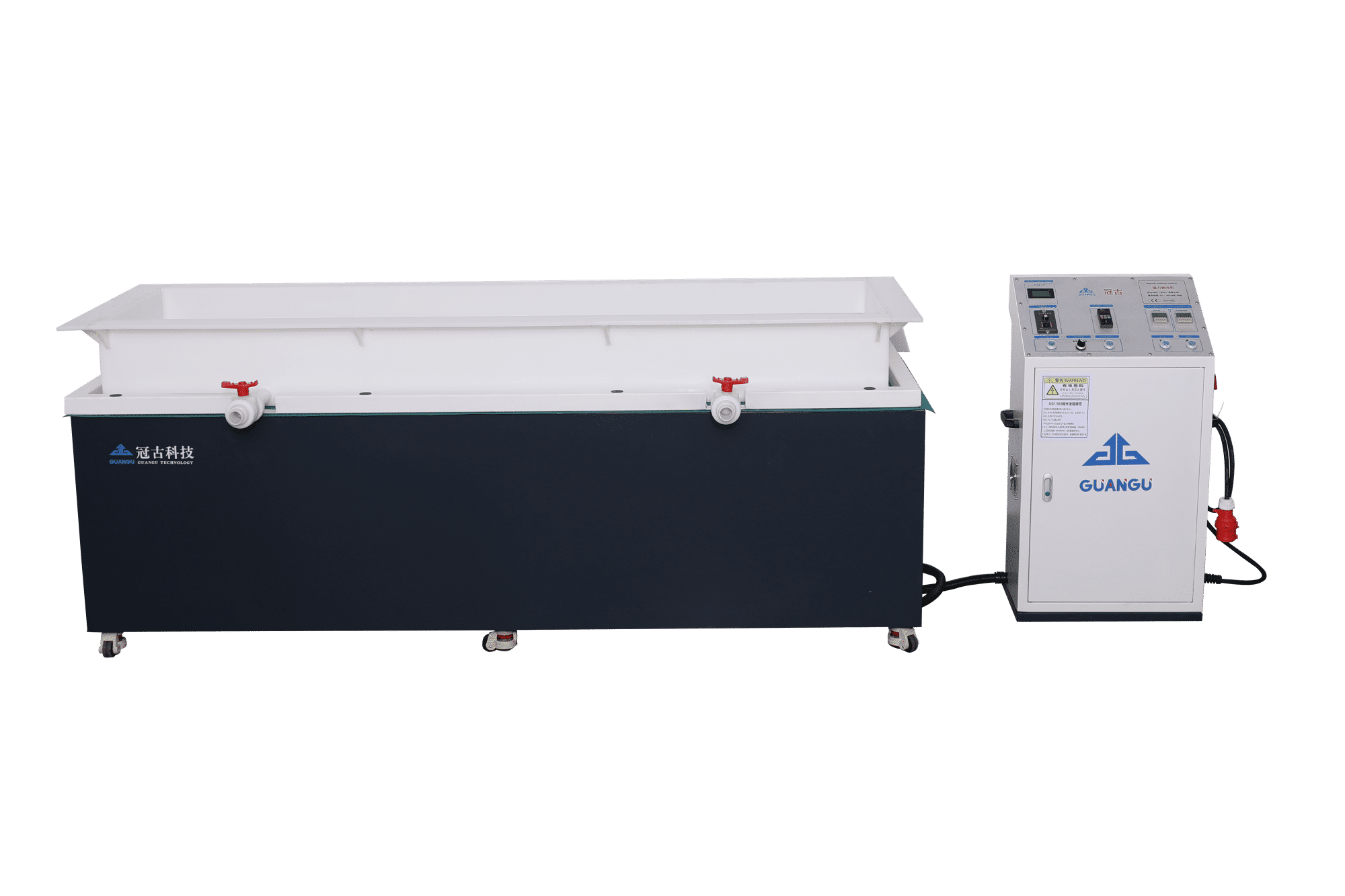

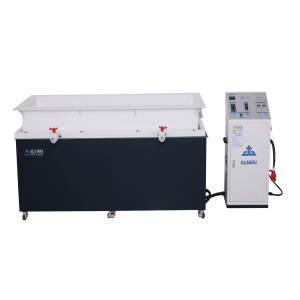

Translating Magnetic Polishing Machine gg2380

Model: GG2380

Brand: Guangu

Product Name: Large-Size Horizontal Translating Magnetic Polishing Machine GG2380

Power supply: AC380V(50/60HZ)32A

Equipment size: 2380x800x1080mm

Grinding groove size: 2200x600mm Square tank

Motor power: 5.5KW2

Machine weight: 660KG

Operation mode: forward, reverse and translation

Maximum processing capacity: 50-70KG

Product Description

GG2380 is a heavy-duty large-size translating magnetic polishing & deburring machine. With an ultra-large long square tank and dual 5.5 kW motors, it handles extra-long workpieces and ultra-large batch volumes. Perfect for mass-production factories for architectural hardware, furniture fittings, sanitary ware, aluminum profiles and large metal components. - Single batch processing time: 2-25 minutes - Max loading 50-70KG, heavy-load mass-production capability - Dual-motor drive, stable translating magnetic movement, consistent polishing across the full long-tank area - Zero-dead-angle processing; no workpiece deformation, no damage to original dimensional tolerance - Simple operation, one operator can run multiple devices - Easy separation: separate workpieces and magnetic steel needles with sieve - Optional magnetic needle sizes: 0.2-3.0mm / 2.0-10mm

Applicable Materials

Brass, copper, aluminum, stainless steel, zinc alloy, titanium alloy, non-magnetic hard iron, large-batch furniture & building metal parts.

Suitable Workpieces

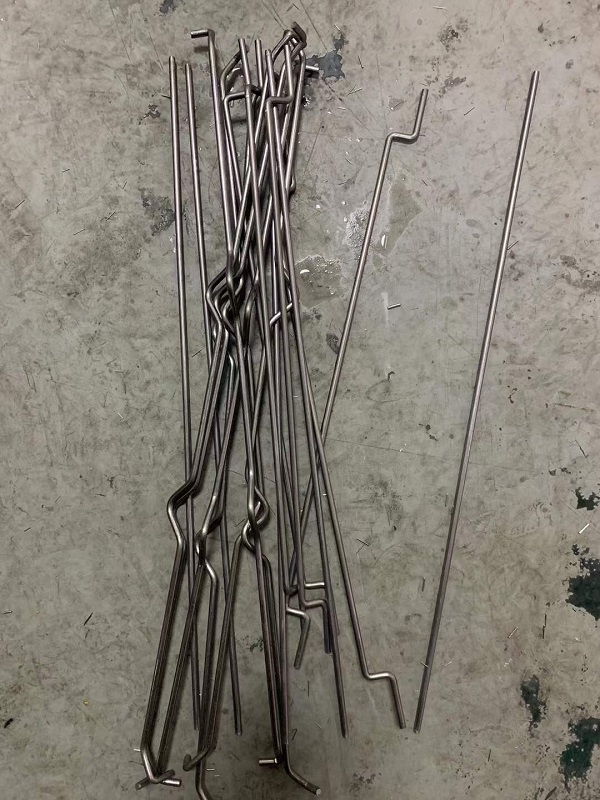

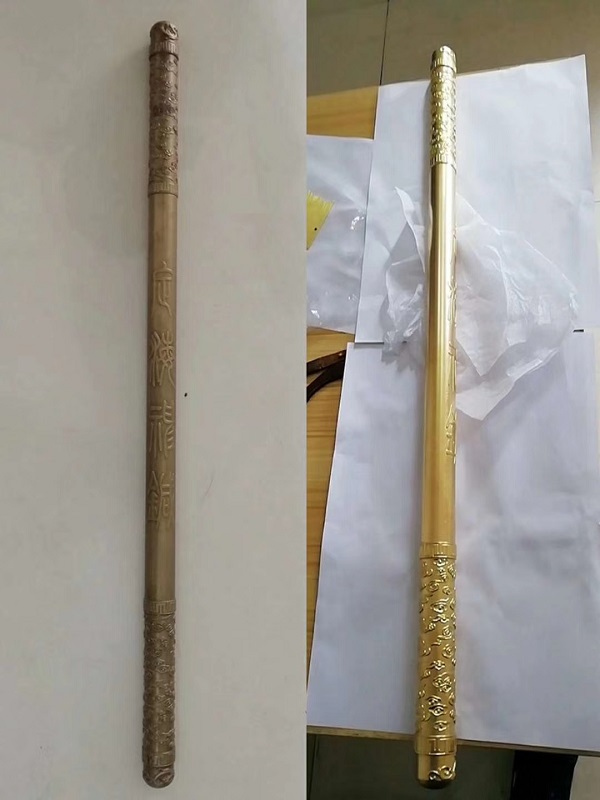

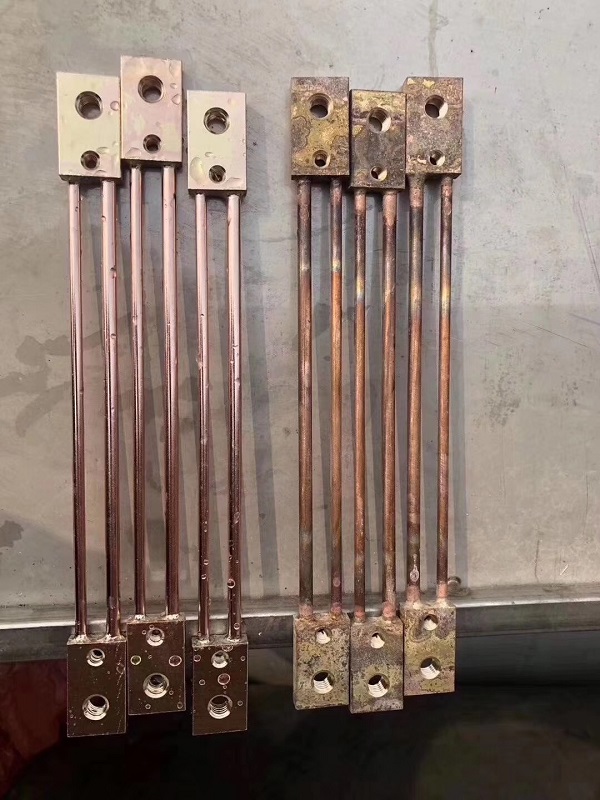

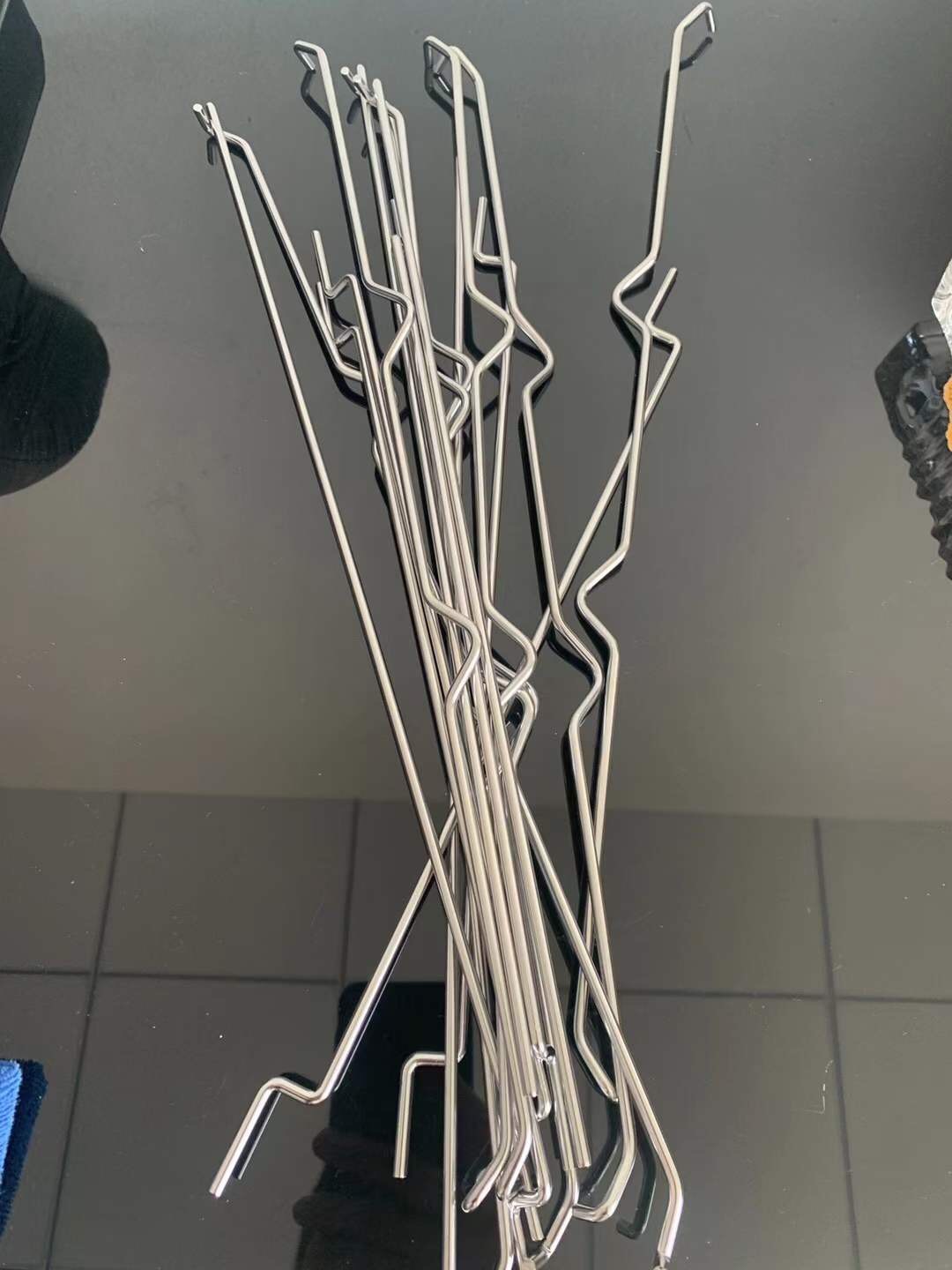

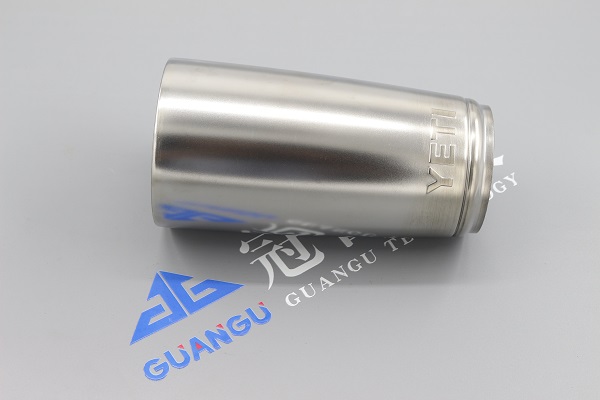

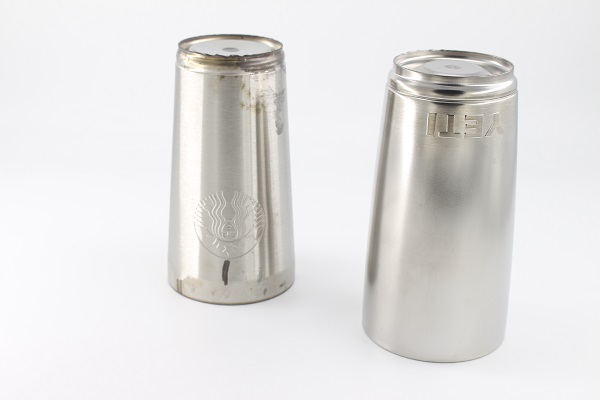

- Extra-long hardware: long door handles, large hinges, door & window fittings, long aluminum / copper profiles - Sanitary-ware metal parts, heavy-duty locks, lighting hardware, architectural metal accessories - Zinc-alloy toy metal parts, instrument housings, electronic equipment shells - Automotive hardware, tableware, fasteners, threaded components - Irregular parts, tubular parts, inner-thread & outer-thread workpieces
