Deburring Magnetic Tumbler gg2980

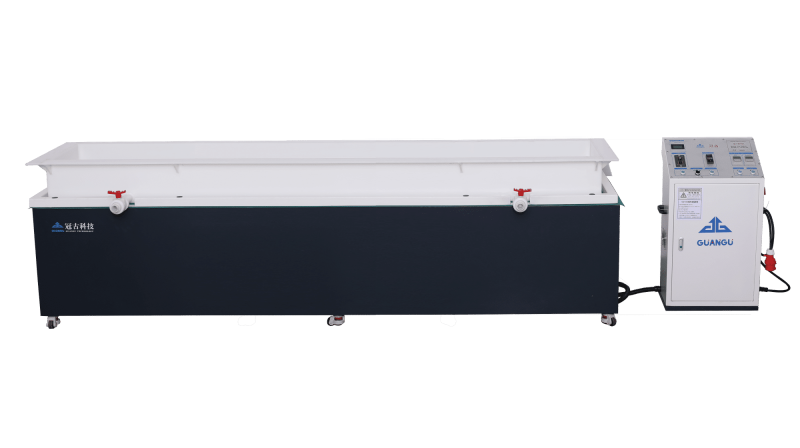

Super‑Long Translating Magnetic Polishing Machine GG2980

Model: GG2980

Brand: Guangu

Product Name: Super‑Long Horizontal Translating Magnetic Polishing Machine GG2980

Power supply: AC380V(50/60HZ)16A

Equipment size: 29807201088mm

Grinding tank size: 2800520mm Square barrel

Motor power: 4.0KW3

Machine weight: 780KG

Operation mode: forward, reverse and translation

Maximum processing capacity: 60‑80KG

Product Description

GG2980 is our flagship super‑long translating magnetic polishing & deburring machine. Fitted with a 2800 mm ultra‑long square tank and triple‑motor drive, it is built for extra‑length workpieces and heavy‑duty high‑volume mass‑production. It is the ideal solution for large‑scale manufacturers of architectural hardware, long aluminum profiles, oversized door handles, extra‑long hinges and building metal fittings.

‑ Single batch processing time: 2‑25 minutes

‑ Max loading 60‑80KG, heavy‑duty mass‑production capacity

‑ Triple‑motor drive, stable horizontal translating magnetic movement, uniform polishing across the full 2800 mm tank length

‑ Zero‑dead‑angle polishing; no workpiece deformation, no damage to original dimensional tolerance

‑ Simple operation, one operator can manage multiple machines

‑ Easy separation: separate workpieces and magnetic steel needles with sieve

‑ Optional magnetic needle sizes: 0.2‑3.0mm / 2.0‑10mm

Applicable Materials

Brass, copper, aluminum, stainless steel, zinc alloy, titanium alloy, non‑magnetic hard iron, large‑size building & furniture metal hardware.

Suitable Workpieces

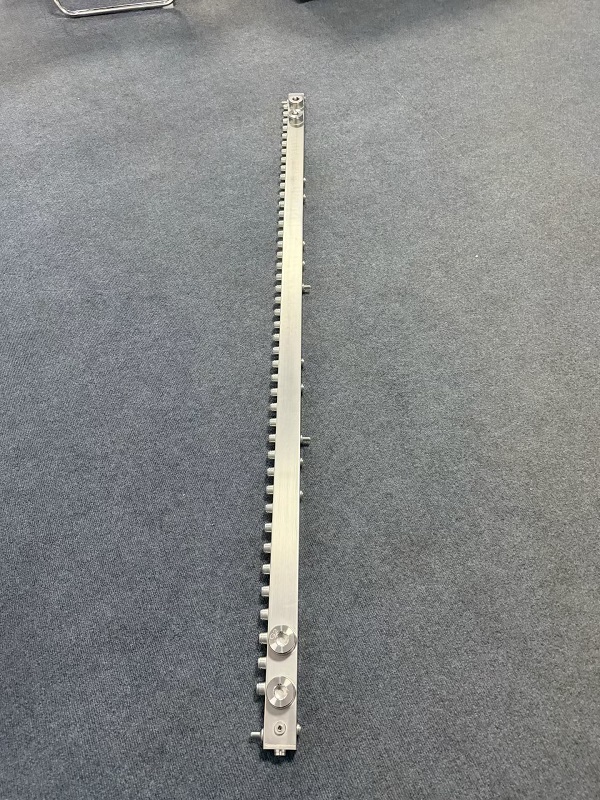

‑ Super‑long hardware: extra‑long door handles, oversized hinges, large door & window fittings

‑ Extra‑long aluminum / copper profiles, heavy‑duty sanitary‑ware metal parts, large‑size locks and lighting hardware

‑ Furniture & architectural metal accessories, large‑batch zinc‑alloy components

‑ Automotive long metal parts, instrument housings, fasteners, threaded workpieces

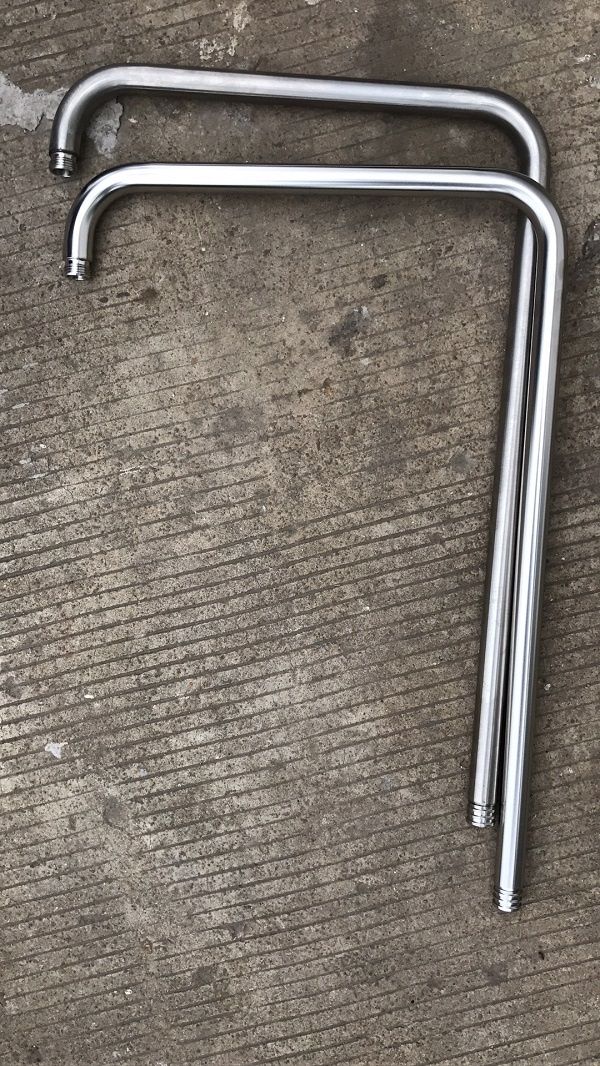

‑ Irregular parts, tubular parts, inner‑thread & outer‑thread components
